USB4 Version 2.0 Basics
USB4 Version 2.0 extends the USB4 family’s tunneling approach by raising the maximum aggregate throughput and tightening interoperability rules across hosts, docks, and peripherals. The headline number often shown in marketing materials is 80Gbps, but that figure describes a best-case link configuration rather than a guaranteed data rate for every device and every workload.
USB4 uses a packet-based transport over high-speed lanes, then tunnels other protocols such as DisplayPort and PCIe. In practice, the host and the connected device negotiate which lanes run at which speeds, then split those lanes between data streams. That negotiation is where the “beyond the label” part matters: the same port can behave differently depending on the device class, the cable, and the dock’s internal routing.
As a concrete example, a laptop with a USB4 port can drive a high-resolution display and transfer storage data at the same time, but the display stream consumes bandwidth budget. If you later plug in a fast SSD through the same dock, the dock may reallocate lanes and reduce the SSD’s peak rate. I’ve seen this kind of behavior on real docks where the display worked flawlessly while the SSD’s transfer rate dropped after connecting an extra monitor, and the vendor’s spec sheet only hinted at lane sharing.
Where the 80Gbps Claim Breaks
The 80Gbps label usually assumes an ideal combination: both endpoints support the highest USB4 v2 link mode, the cable meets the required signaling characteristics, and the traffic pattern uses the link efficiently. Many real setups fail one of those assumptions, so the negotiated rate lands lower.
One common misunderstanding is treating “USB4” as a single speed tier. USB4 ports can negotiate different lane counts and speeds, and USB4 v2 adds additional modes that depend on controller firmware and the dock’s retimers and routing. A cable that is “USB-C” and even “40Gbps” can still limit higher modes if it lacks the required electrical performance for the v2 signaling profile.
Another pain point is assuming that storage benchmarks translate directly to everyday use. File transfers often show bursty behavior, with protocol overhead, filesystem patterns, and device internal caching affecting throughput. Even if the link can do 80Gbps, an SSD enclosure’s controller, thermal limits, and USB-to-storage bridge design can cap sustained rates well below the link maximum.
Display tunneling adds another dependency. DisplayPort streams carry their own bandwidth needs, and the dock may reserve lanes for video even when you think you are “just transferring files.” That reservation can reduce the remaining bandwidth for PCIe tunneling, which is the path used for many external storage and high-speed networking scenarios.
Solutions And Advice
Check Negotiated Link Speed
Start by verifying what the host actually negotiates, not what the marketing box promises. On Windows, tools like USBView (from Microsoft) and vendor utilities can show negotiated USB4/Thunderbolt capabilities, though the exact fields vary by driver version. On macOS, system reports may show Thunderbolt/USB4 topology details, but they often stop short of reporting the negotiated lane mode.
If you see only partial information, treat the absence of detail as a signal to test. Run a repeatable transfer test to a known-good SSD enclosure and compare results with and without video devices attached to the same dock. If the rate drops when a monitor is connected, lane sharing is the likely cause, and the dock’s documentation may describe a “max performance with one display” condition.
As an incidental detail: I’ve noticed that some docks behave differently after firmware updates, and the change can show up as a new maximum mode in the host’s device tree. That’s why a “works on day one” test should be repeated after any dock firmware update, even if the update notes look minor.

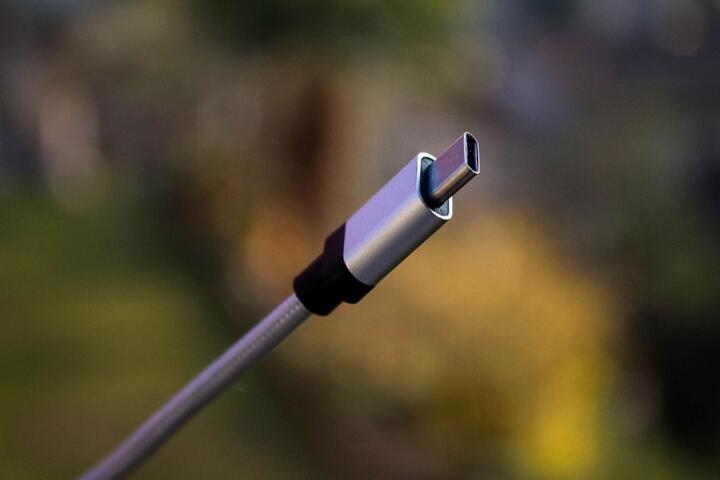

Match Cable Ratings To Mode
USB-C cables are not interchangeable at the electrical layer. For USB4 v2, you need a cable that explicitly supports the required USB4 v2 signaling and throughput mode. Look for published cable test standards and certification claims from the cable vendor; generic “high-speed” language usually does not guarantee the electrical margin needed for higher modes.
Practical approach: test with a known certified cable first, then test with the cable you plan to keep. If you only own one cable, you can still learn something by swapping docks or ports, but the cleanest signal comes from isolating the cable variable. If your setup uses a long cable run, expect more negotiation fallback than with a short, thick cable.
One mild frustration: many product pages list “up to 40Gbps” for older USB4 generations, and the page may not mention USB4 v2 support at all. In that case, the safe assumption is that the cable can’t be relied on for the v2 peak mode.
Plan For Lane Sharing
When you use a dock, treat it like a shared switch rather than a set of independent ports. A dock that supports multiple displays and fast storage must arbitrate bandwidth across its internal links. If your workload includes both video and high-speed data, you should plan for reduced peak throughput on the storage path.
Use a simple decision rule: if you need maximum SSD throughput, connect the SSD directly to the laptop’s USB4 port and connect displays separately, or use a dock mode that the vendor documents as “single display” for maximum data performance. If you need both, accept that the SSD’s sustained rate may land closer to the negotiated “remaining bandwidth” after video reservations.
For a realistic outcome target, many external SSD enclosures over USB4 class links land in the tens of Gb/s range for sustained transfers when the enclosure and bridge support it. The exact number depends on the SSD’s own performance and the bridge’s PCIe lane mapping, so treat any single benchmark as a scenario, not a universal guarantee.
Validate With Workload Tests
Benchmarking should match your workload. A synthetic “max sequential read” test can overstate real performance for mixed file sizes, small files, and metadata-heavy operations. For practical evaluation, test with the file sizes you actually move and measure both throughput and time-to-complete.
Use at least two test patterns: one large-file transfer to see link and bridge limits, and one mixed set to see overhead effects. If you are testing a dock for creative work, include a scenario that triggers sustained writes, not just reads, because some bridges throttle under continuous write load.
As a small aside from lab-style testing habits: I often record results with the same SSD, same temperature conditions, and the same cable length, then repeat after a reboot. That repetition catches cases where the host re-negotiates modes after sleep or driver reload.
Case Examples
Dock With Dual Displays
An anonymized user connects a laptop to a USB4 dock that supports two external displays and an external SSD. With one display connected, the SSD transfers large files at a high sustained rate. After connecting the second display, the SSD’s throughput drops during sustained transfers, while the displays remain stable.
The likely mechanism is lane sharing and bandwidth reservation for the second DisplayPort stream. The dock’s internal controller may reallocate lanes away from the PCIe tunneling path used by the SSD enclosure. The user gets better results by using a dock configuration documented for single-display maximum performance or by connecting one display through a separate port path.
Direct SSD Vs Dock
An anonymized user tests an external NVMe SSD enclosure connected through a USB4 dock. The enclosure shows strong performance in a direct connection to the laptop’s USB4 port, then lower sustained throughput through the dock. The user also notices that the dock’s USB ports remain responsive during transfers, which suggests the issue is not a total bandwidth collapse.
The likely cause is the dock’s internal mapping of PCIe tunneling lanes to the USB4 link, plus overhead from the dock’s switching and retimers. The user improves results by connecting the SSD directly, or by using a dock model that the vendor documents as supporting higher PCIe tunneling performance for storage when video is not in use.
Comparison Table And Checklist
| Decision Point | What To Look For | What It Means In Practice | Quick Test |
|---|---|---|---|
| USB4 v2 support | Host, dock, and device explicitly mention USB4 v2 | All endpoints must agree; otherwise negotiation falls back | Update firmware, then retest after reboot |
| Cable capability | Cable rated for the needed USB4 v2 mode | A weaker cable can force lower link modes | Swap to a certified cable and compare sustained rate |
| Video load | Dock spec for max performance with displays | Display streams reserve bandwidth from storage | Run the same transfer with 0, 1, then 2 displays |
| Storage bridge | SSD enclosure controller and PCIe mapping | Bridge limits can cap throughput below link capability | Test the same enclosure direct vs via dock |
Step-by-step checklist
- Confirm every device in the chain supports USB4 v2, not just “USB-C” or “USB4.”
- Use a cable with explicit USB4 v2 support and a short length for first tests.
- Test storage with no displays attached, then repeat with your typical display setup.
- Repeat after firmware updates for the host and dock; mode negotiation can change.
- Record sustained transfer results for your real file sizes, not only a single benchmark run.
Common Mistakes
People often buy a dock based on the maximum headline bandwidth and then connect multiple high-bandwidth peripherals without checking how the dock allocates lanes. The result looks like “USB4 v2 doesn’t work,” when the dock is doing what it was designed to do: share a limited link budget across tunnels.
Another mistake is assuming that a “40Gbps” cable can carry USB4 v2 peak modes. Cable ratings for older generations do not guarantee electrical performance for higher signaling profiles, and the host may fall back to a lower negotiated mode.
Some users also compare results across different SSD enclosures and treat the difference as a USB4 problem. USB4 link speed is only one part of the chain; the enclosure’s bridge controller, PCIe lane width, and thermal throttling can dominate sustained throughput.
Finally, people sometimes test only once and stop after seeing a fast burst. A short transfer can finish before throttling or before the device settles into steady-state behavior, which hides the real sustained performance you care about.
FAQ
Does USB4 Version 2.0 Always Hit 80Gbps?
No. 80Gbps describes a maximum aggregate link capability under specific negotiated lane and signaling conditions across all endpoints, and real setups often negotiate lower modes due to cable limits, dock routing, or concurrent video streams.
Will Any USB-C Cable Work With USB4 v2?
Not reliably. USB4 v2 peak modes require cables that meet the needed electrical characteristics for the higher signaling profile; many cables rated for older speeds can force fallback to lower negotiated performance.
Why Does My SSD Slow Down When I Plug in a Monitor?
Display tunneling consumes bandwidth budget and can reserve lanes on the dock’s internal switching path. The remaining bandwidth for PCIe tunneling to the SSD drops, so sustained transfer rates fall even when the SSD enclosure itself is unchanged.
How Can I Tell If My Dock Supports USB4 v2?
Check the dock’s documentation for explicit USB4 v2 support and any stated performance limits with displays. If the vendor only lists generic USB4 or Thunderbolt compatibility, the dock may not support the highest v2 modes.
Do Firmware Updates Change USB4 Performance?
They can. Host and dock firmware can change link negotiation behavior, retimer settings, and tunneling mappings, so repeating your tests after updates helps you avoid chasing a performance issue that was already fixed.
Author's Insight
USB4 Version 2.0’s headline bandwidth is best treated as an upper bound on a negotiated link mode, not a guarantee for every device chain. The practical bottlenecks usually sit in cable capability, dock lane sharing, and the PCIe tunneling mapping inside the dock or SSD enclosure.
Evidence-based evaluation means testing with your actual mix of peripherals and file sizes, then isolating variables by comparing direct-to-host versus dock connections. If your results change when you add displays, the behavior aligns with how tunneled protocols share bandwidth rather than with a “broken” USB4 port.
For readers who want a quick sanity check, the most informative data comes from sustained transfers under steady load, repeated after firmware updates. I’d also keep a short log of negotiated conditions and test setup so you can interpret changes without guessing.
Key Takeaways
- 80Gbps is a maximum negotiated capability, not a default outcome for all USB4 v2 setups.
- Cables, docks, and devices must all support the needed USB4 v2 modes; one weak link forces fallback.
- Lane sharing explains many “SSD got slower with a monitor” cases, especially on multi-display docks.
- Validate with sustained, workload-matched tests and repeat after firmware updates.
